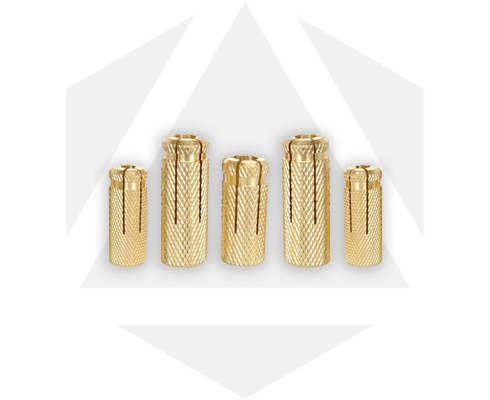

Brass Slotted Anchors with embossed surface provide extra grip inside conical shape so that ensure equal expansion of segments while it screwing. It has larger bearing area and acts as a socket. Fixture can be removed and replaced.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Thread | Slotted | |
| Type | Slotted | |
| Drive Type | Slot | |
| Grade | A1 & A2 Stainless Steel, A2 & A4 Steel | |
| Material | Brass, Stainless Steel, Steel, Other light alloy | |
| Applications | Can be used in scaffolding, plating, ventilating, etc. | |
| Thread Size | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 |
|---|---|---|---|---|---|---|---|---|---|
| Outside (Mm) | 5 | 6.5 | 8 | 8 | 10 | 12 | 15 | 18 | 20 |
| Full Length (Mm)15 | 15 | 20 | 23 | 28 | 28 | 32 | 38 | 43 | 50 |
| Safe Static Load Tension (KN) | 0.02 | 0.87 | 1.10 | 1.30 | 1.40 | 2.20 | 2.30 | 2.50 | 2.85 |
