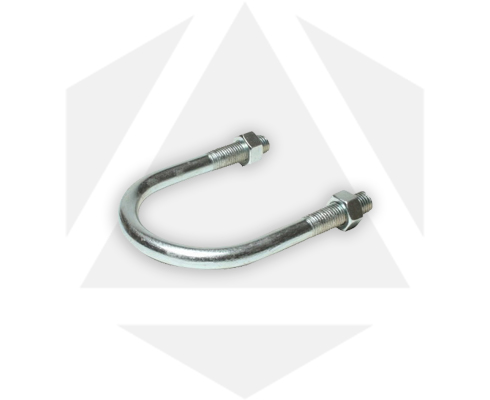

Brass U Bolts are Torque Bolts which are manufactured from wear and corrosion resistant antimicrobial copper zinc alloy. Dimensional standards as per DIN 3573 are provided. The raw material of U Bolts is classified as non-ferrous alloys. Brass U Bolts are available in hot forged and bar stock machined conditions.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | Steel, Stainless Steel, Carbon Steel Alloy, Alloy Steel, Brass | |
| Thread | Coarse, Metric | |
| Type | Bent Bolts, Round and Square Bolts | |
| Grade | A1 & A2 Stainless Steel, A2 & A4 Steel, CDA 360 Brass, C360 Brass | |
| Size (B x C) | Thread Length (D) | Fits Pipe Size | ||
|---|---|---|---|---|
| 1/4"-20 (A) | ||||
| 9/16" | x | 1-3/8" | 3/4" | 1/4" |
| 3/4" | x | 1-1/4" | 3/4" | 3/8" |
| 3/4" | x | 1-3/4" | 1" | 3/8" |
| 3/4" | x | 2-3/4" | 2" | 3/8" |
| 3/4" | x | 4-3/4" | 4" | 3/8" |
| 1" | x | 1-3/4" | 1" | 1/2" |
| 1-1/8" | x | 2-1/4" | 1-1/4" | 3/4" |
| 1-1/8" | x | 3-1/2" | 2-3/4" | 3/4" |
| 1-3/8" | x | 2-3/4" | 1-3/4" | 1" |
| 1-3/4" | x | 2-3/4" | 1-1/4" | 1-1/4" |
| 2" | x | 3-1/2" | 1-3/4" | 1-1/2" |
